CaptiveAire DU85-SC-1250-3000 High Speed Direct Drive Centrifugal Upblast Exhaust Fan CFM Range: 1250 CFM to 3000 - 115v

CaptiveAire DU85-SC-1250-3000 High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control

This cooking exhaust fan is designed for continuous operation to remove stale, grease filled air from indoor environments. It has an upblast design to direct the discharged air away from the roof or wall.

(Speed control included for single phase only)

• Disconnect switch and 15-3/4" wheel
• Exhaust Fan handles 1250 to 3000 CFM @ -1.000" wc ESP
• Fan runs at 1268 RPM
• Exhaust Motor: 1 HP, 1 Phs, 115 V, 60Hz, 10.2 FLA, ODP (Open Drip Proof)

Flashing size needed 23" x 23"

Fan base 24-3/4"

FEATURES & BENEFITS

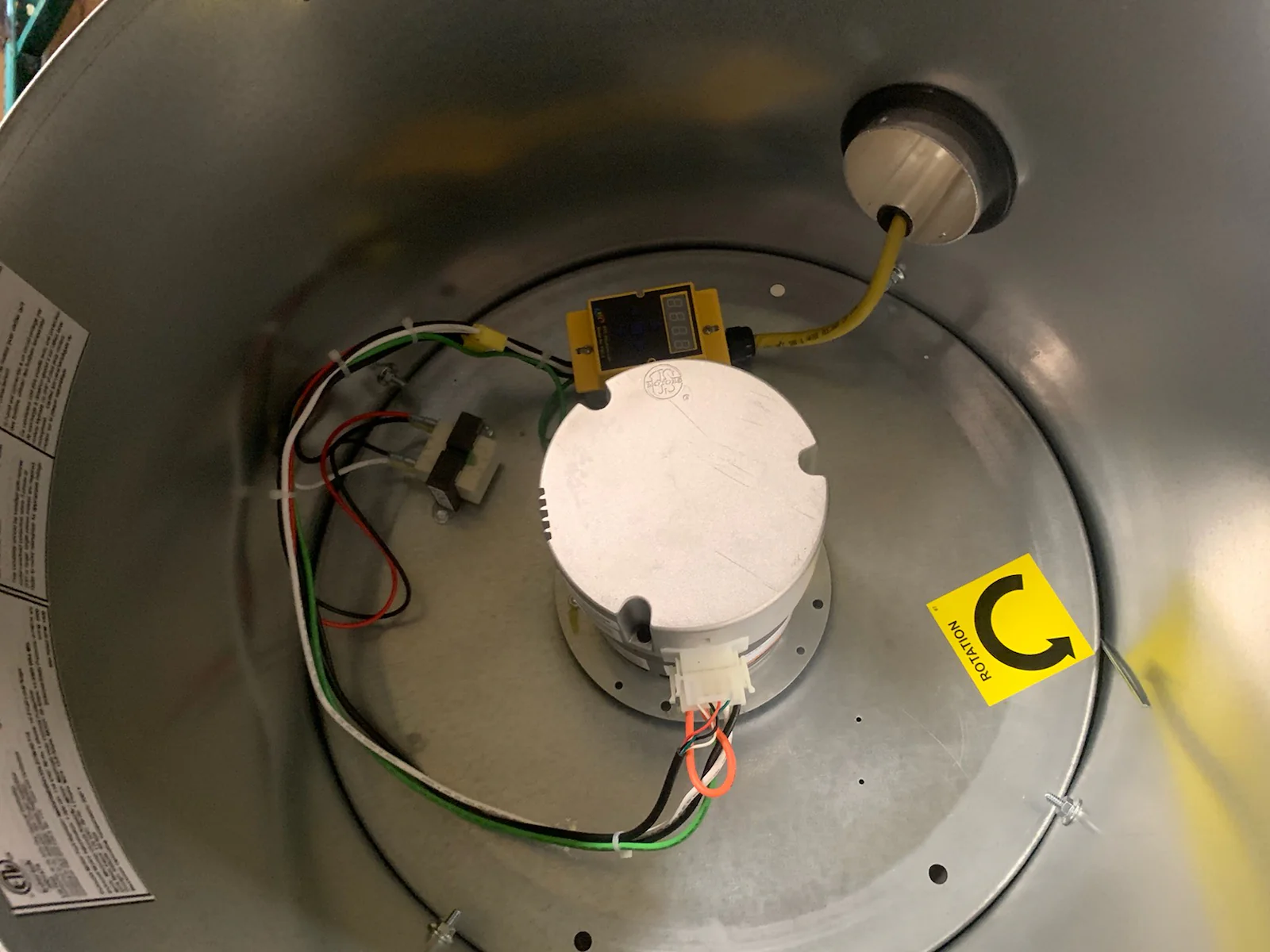

• Completely enclosed drive compartment protects motor from airborne contaminants
• Forced fresh air through the motor compartment cools motor and ensures long motor life
• Variable Speed Control on Single Phase Units Only. (VFDs required to adjust speed for 3 phase versions)
• Non-overloading backward inclined wheels, blades and inlets fabricated from aluminum
• Units up to 24" nominal wheel can be wall mounted
• Quick release latches allow for easy access to motor compartment. (Size 12 & larger)
• Standard emergency disconnect switch (Size 12 & larger)
